Description
SPECIFICATIONS
Control Area(ha): 6-27
Irrigation Distance(m): 100-400
Length of Pipe(m): 100-400
Local Service Location: China
Pipe Diameter(mm): 40-100
Pressure(Mpa): 0.35-1.0
Service Life(year): 15
Sprinkling Width (m): 30-90
Water Flow(m^3/h): 4.3-72
after-sales service provided: Free Spare Parts,Field installation, commissioning and training,Field Maintenance and Repair Service,Video Technical Support,Online support
core components: Bearing,Gear
diameter: 6.5 cm
feature: Automatic, Long uniform spraying range
key selling points: Save water,Automatic recovery,Uiform spraying
machinery test report: Provided
material: Stainless Steel Water Turbine and PE Pipe
place of origin: China
type: IRRIGATION SYSTEM
usage: Agriculture
video outgoing-inspection: Provided
warranty: 1 Year
weight: 500 KG
floppy sprinkler system for wheat cultivation pop up hose for technified irrigation system

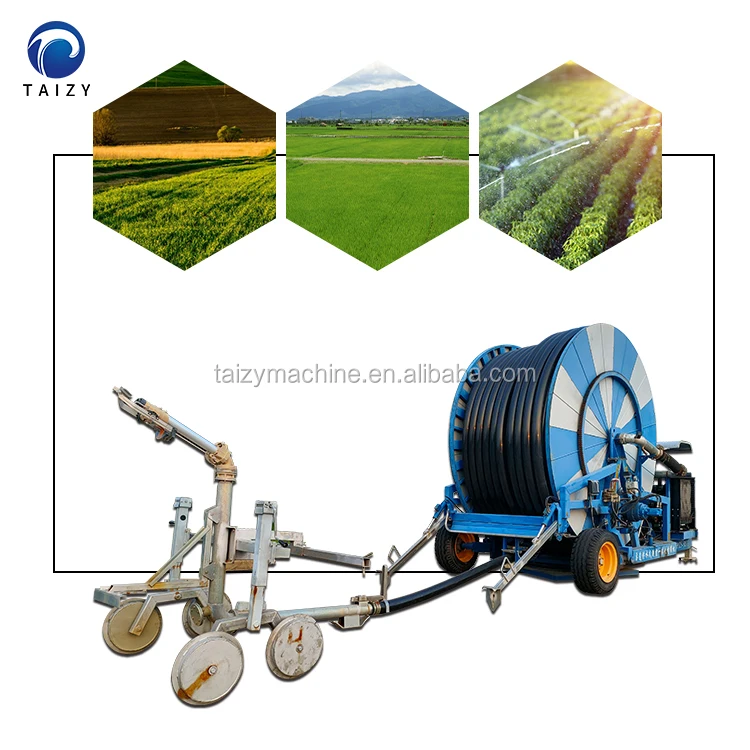

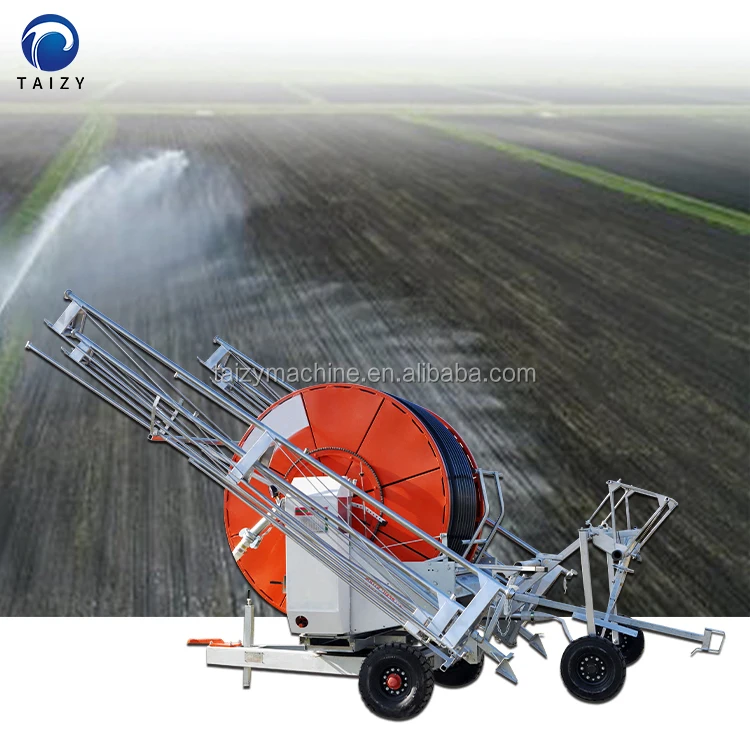

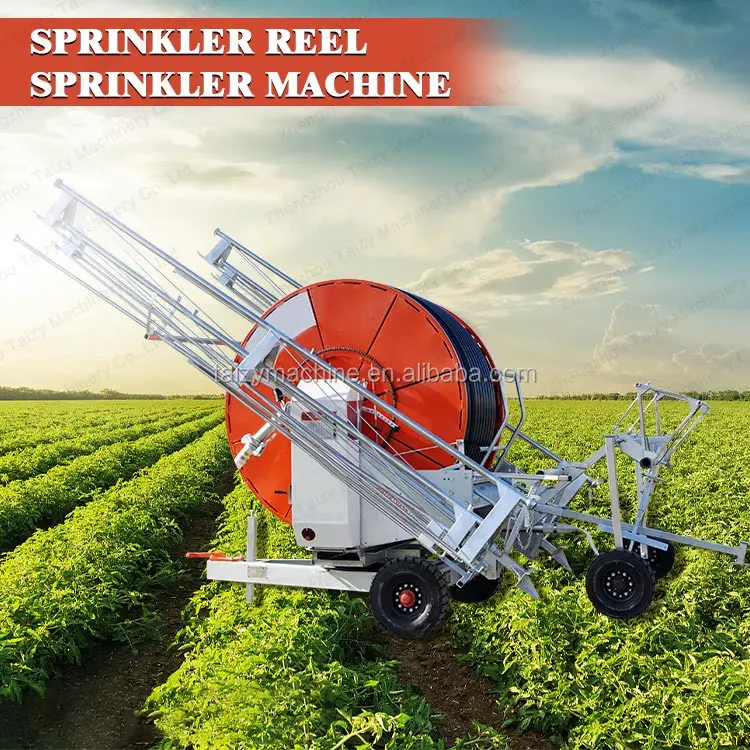

Introduction of Hose Reel Sprinkler Irrigation System

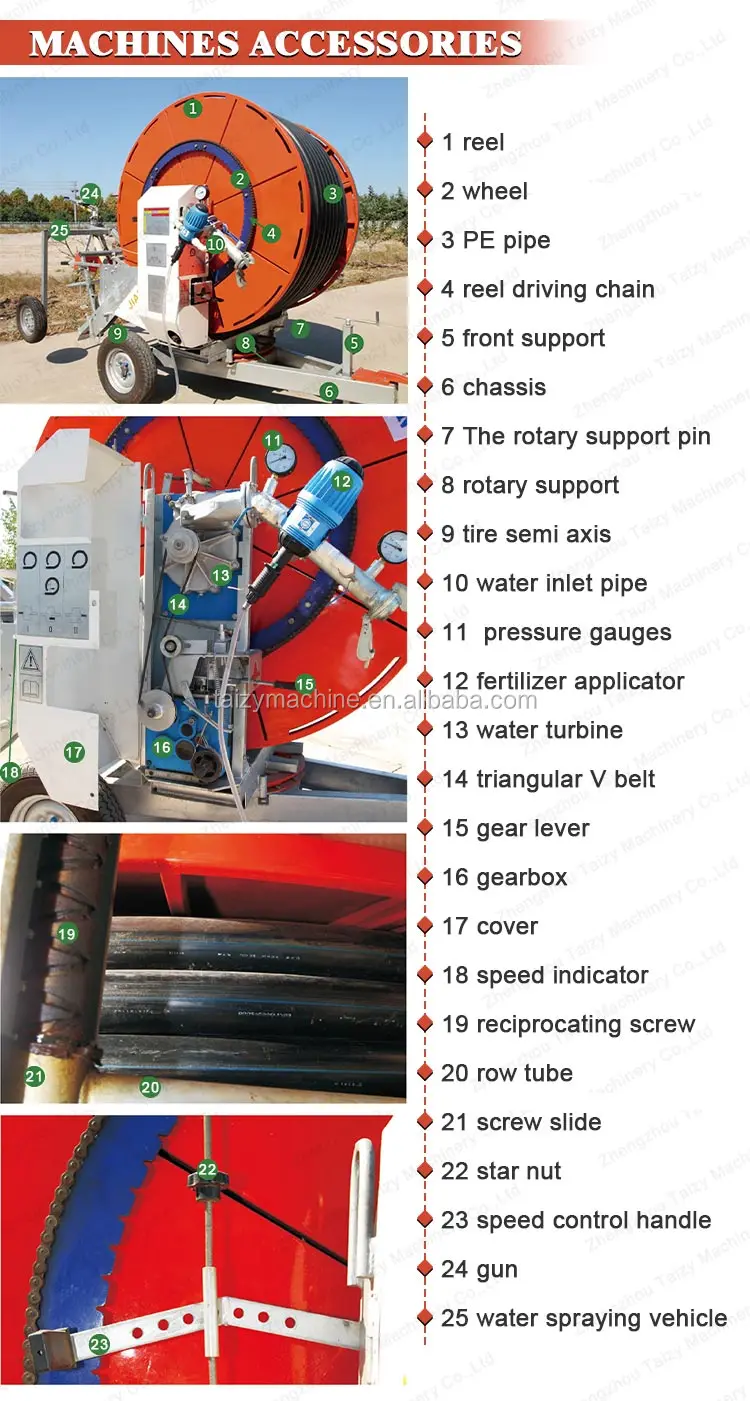

1. It is mainly composed of a chassis, frame, winch, PE water pipe, automatic speed control device, water turbine drive device, gearbox, spray irrigation system car, guide device, safety device, etc.
2. JP series reel hose for technified irrigation machine is a self-propelled machine driven by a water turbine. Water enters the water turbine through pressure and uses the kinetic energy of the water to drive the water turbine to rotate. The rotation of the water turbine drives the winch to rotate through the multi-function gearbox, and the PE pipe is dragged to realize the sprinkler car goes back evenly. At the same time, the water enters the PE pipe and is transferred to the sprinkler to realize the normal spraying of the sprinkler.

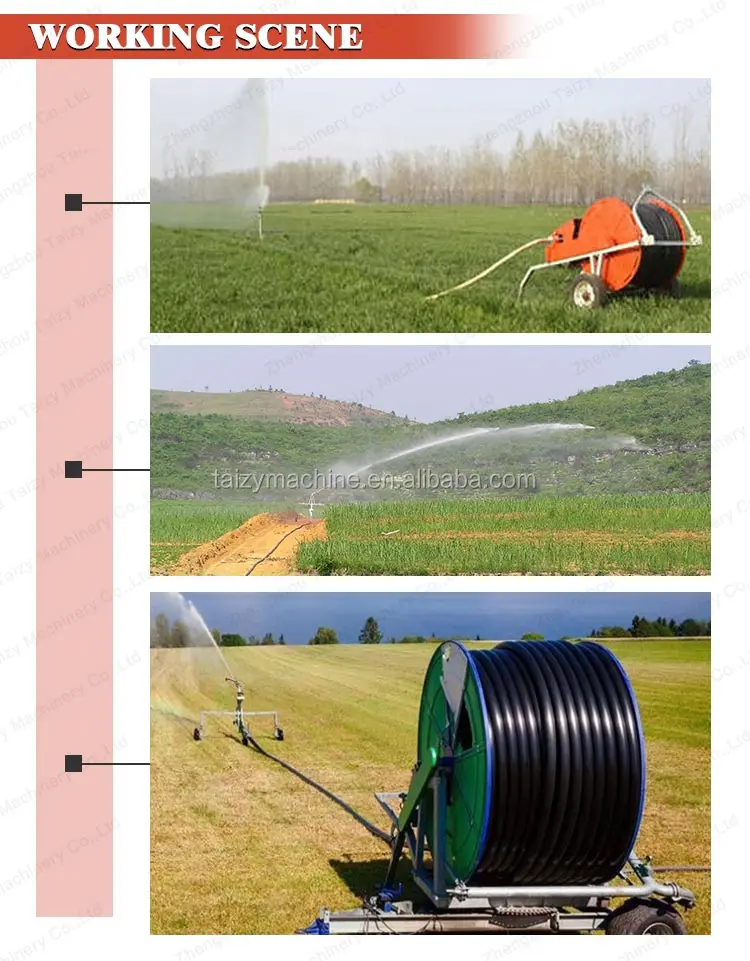

Application Crops and Scope
1. The hose for technified irrigation machine is widely used in the spraying operations of cotton, wheat, rice, tobacco, peanuts, sugarcane, hemp, fruits, vegetables, tea, pasture, and other crops in plains and hilly areas.
2. It can also be used for dust removal in urban green spaces, power plants, and docks.
3. The hose for technified irrigation machine is ideal for water-saving irrigation equipment.
Parameters of Hose Reel Sprinkler Irrigation System
|
Model |
JP40 |
JP50 |
JP65 |
JP75 |
JP90 |
JP100 |
|
Pipe Diameter(mm) |
40 |
50 |
65 |
75 |
90 |
100 |
|
Irrigation Distance(m) |
100-180 |
100-180 |
200-400 |
200-400 |
200-400 |
|
|
Sprinkling Width(m) |
30-45 |
30-45 |
47-90 |
47-90 |
47-90 |
47-90 |
|
Pressure(Mpa) |
0.35-0.70 |
0.35-0.70 |
0.4-1.0 |
0.4-1.0 |
0.4-1.0 |
0.4-1.0 |
|
15 |
15 |
15 |
15 |
15 |
Advantages of Hose Reel Sprinkler Irrigation System
1. The JP series reel hose for technified irrigation machine has the advantages of convenient movement, simple operation, labor-saving, time-saving, fertilizer saving, water saving, long spray gun range, uniform spraying, automatic recycling of equipment, safety, and reliability.
2. JP series reel sprinklers have a low impact on crops and soil and are less affected by wind. It can effectively provide the required water and improve crop quality.
3. Low operating and maintenance costs.
1. Ask: The voltage is different. How should we use it in our country?
Answer: The voltage can be customized according to your country standard.Such as 110V,220V,380V etc.
2. Ask: How can we get the best price?
Answer: Quality is the heart of one company. We can not promise the lowest price, but we can promise the best quality and most reasonable price. On the other hand, the bigger the order you placed, the cheaper the price you will get!
3. Ask: Where is your factory located? How can I visit there?
Answer: Our factory is located in Zhengzhou, Henan Province, China. You can fly
to Xinzheng Airport directly. We will pick you up at Xinzheng International airport.
4. Ask: How about your after-sale service?
Answer: Any question you have, no matter whether in the warranty period or not.
As long as you give me an email or video. Our engineers and I are very willing to solve the problem for you. if necessary, we will arrange our engineers to help you in your country.
5. Ask: The date of delivery?
Answer: Generally within 15 working days. If there is a need for special customization, it may take a little longer.
